h3_grid

Fit a h3 hexagonal grid on top of a geopandas.GeoDataFrame.

Parameters:

Name Type Description Default
gdf GeoDataFrame

GeoDataFrame to fit grid to.

 required
resolution int

H3 resolution, by default 9.

 9
to_lonlat bool

Whether to convert to lonlat coordinates, by default True.

 True

Returns:

Type Description
GeoDataFrame

gpd.GeoDataFrame: Fitted h3 hex grid.

Examples:

>>> from histolytics.spatial_ops.h3 import h3_grid
>>> from histolytics.data import cervix_tissue
>>>
>>> # get the stromal tissue
>>> tis = cervix_tissue()
>>> stroma = tis[tis["class_name"] == "stroma"]
>>> # Fit an H3 grid to the stromal tissue
>>> h3_gr = h3_grid(stroma, resolution=9)
>>> print(h3_gr.head(3))
                                                          geometry
8982a939503ffff  POLYGON ((6672.79721 859.08743, 6647.90711 661...
8982a939877ffff  POLYGON ((2556.61731 5658.46273, 2581.53692 58...
8982a939c4bffff  POLYGON ((4546.44516 4059.58249, 4366.53531 39...

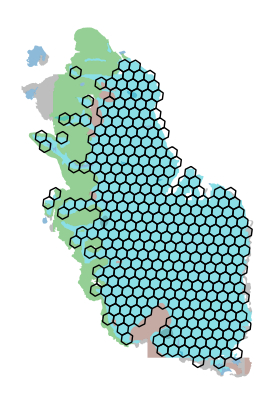

>>> ax = tis.plot(column="class_name", figsize=(5, 5), aspect=1, alpha=0.5)
>>> h3_gr.plot(ax=ax, edgecolor="black", facecolor="none", lw=1)
>>> ax.set_axis_off()

out

Source code in src/histolytics/spatial_ops/h3.py
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
def h3_grid(
    gdf: gpd.GeoDataFrame, resolution: int = 9, to_lonlat: bool = True
) -> gpd.GeoDataFrame:
    """Fit a `h3` hexagonal grid on top of a `geopandas.GeoDataFrame`.

    Parameters:
        gdf (gpd.GeoDataFrame):
            GeoDataFrame to fit grid to.
        resolution (int):
            H3 resolution, by default 9.
        to_lonlat (bool):
            Whether to convert to lonlat coordinates, by default True.

    Returns:
        gpd.GeoDataFrame:
            Fitted h3 hex grid.

    Examples:
        >>> from histolytics.spatial_ops.h3 import h3_grid
        >>> from histolytics.data import cervix_tissue
        >>>
        >>> # get the stromal tissue
        >>> tis = cervix_tissue()
        >>> stroma = tis[tis["class_name"] == "stroma"]
        >>> # Fit an H3 grid to the stromal tissue
        >>> h3_gr = h3_grid(stroma, resolution=9)
        >>> print(h3_gr.head(3))
                                                                  geometry
        8982a939503ffff  POLYGON ((6672.79721 859.08743, 6647.90711 661...
        8982a939877ffff  POLYGON ((2556.61731 5658.46273, 2581.53692 58...
        8982a939c4bffff  POLYGON ((4546.44516 4059.58249, 4366.53531 39...
        >>> ax = tis.plot(column="class_name", figsize=(5, 5), aspect=1, alpha=0.5)
        >>> h3_gr.plot(ax=ax, edgecolor="black", facecolor="none", lw=1)
        >>> ax.set_axis_off()
    ![out](../../img/h3_grid.png)
    """
    if gdf.empty or gdf is None:
        return

    # drop invalid geometries if there are any after buffer
    gdf.loc[:, "geometry"] = gdf.make_valid()
    orig_crs = gdf.crs

    poly = shapely.force_2d(gdf.union_all())
    if isinstance(poly, Polygon):
        hexagons = _poly2hexgrid(poly, resolution=resolution, to_lonlat=to_lonlat)
    else:
        output = []
        for geom in poly.geoms:
            hexes = _poly2hexgrid(geom, resolution=resolution, to_lonlat=to_lonlat)
            output.append(hexes)
        hexagons = pd.concat(output)

    return hexagons.set_crs(orig_crs, allow_override=True).drop_duplicates("geometry")
