legendgram

Create a histogram legend for a specified column in a GeoDataFrame.

Note

"Legendgrams are map legends that visualize the distribution of observations by color in a given map."

Parameters:

Name Type Description Default
gdf GeoDataFrame

The GeoDataFrame containing segmented objects.

required
column str

The column/feature name to create the legend for. This needs to be numeric.

required
n_bins int

The number of bins to use for the histogram.

100
cmap str

The name of the matplotlib colormap to use for the legend.

'viridis'
breaks ndarray

Custom breaks for the histogram. If None, breaks will be calculated based on the data in the specified column. If provided, should be a 1D array of numeric values that define the bin edges.

None
frame_on bool

Whether to draw a frame around the legend.

False
add_mean bool

Whether to add a vertical line for the mean of the specified column.

True
add_median bool

Whether to add a vertical line for the median of the specified column.

False
lw float

Line width for the mean/median line. Ignored if both add_mean and add_median are False.

2
lc str

Line color for the mean/median line. Ignored if both add_mean and add_median are False.

'black'
ticks int | List[float]

Number of x-ticks or an array of explicit tick locations for the x-axis.

None
tick_params dict

Extra parameters for the tick labels.

{'labelsize': 10}
ax Axes

The axes to draw the legend on. If None, a new axes will be created and the legend will be returned as standalone plt.Axes.

None
loc str

The location of the legend. One of: "upper left", "upper center", "upper right", "center left", "center", "center right", "lower left", "lower center", "lower right". Ignored if ax is not provided.

'lower left'
legend_size Tuple[str, str] | Tuple[float, float]

The size (width, height) of the legend. If the values are floats, the size is given in inches, e.g. (1.3, 1.0). If the values are strings, the size is in relative units to the given input axes, e.g. ("40%", "25%") means 40% of the width and 25% of the height of the input axes. Ignored if ax is not provided.

('40%', '25%')

Returns:

Type Description
Axes

plt.Axes: The axes containing the histogram legend. If ax is provided, it will be the same axes; otherwise, a new axes will be created and returned.

Examples:

>>> from histolytics.data import cervix_tissue, cervix_nuclei
>>> from histolytics.spatial_ops.ops import get_objs
>>> from histolytics.spatial_geom.shape_metrics import shape_metric
>>>
>>> # Get the cervix nuclei and tissue data
>>> nuc = cervix_nuclei()
>>> tis = cervix_tissue()
>>> # Filter the tissue data for CIN lesions and get the neoplastic nuclei
>>> lesion = tis[tis["class_name"] == "cin"]
>>> neo = get_objs(lesion, nuc)
>>> neo = neo[neo["class_name"] == "neoplastic"]
>>> # Calculate the eccentricity for the neoplastic nuclei
>>> neo = shape_metric(neo, ["eccentricity"])
>>>
>>> # Plot the neoplastic nuclei with eccentricity as a color scale
>>> col = "eccentricity"
>>> ax = nuc.plot(
...     column="class_name",
...     figsize=(6, 6),
...     aspect=1,
...     alpha=0.5,
... )
>>> ax = neo.plot(
...     ax=ax,
...     column=col,
...     legend=False,
...     cmap="turbo",
... )
>>> ax.set_axis_off()
>>>
>>> # Add a legendgram to the plot
>>> legendgram(
...     neo,
...     column=col,
...     ax=ax,
...     n_bins=50,
...     cmap="turbo",
...     frame_on=False,
...     lw=2,
...     lc="black",
...     ticks=3,
...     legend_size=("30%", "20%"),
... )

legendgram

Source code in src/histolytics/utils/plot.py
def legendgram(
    gdf: gpd.GeoDataFrame,
    column: str,
    n_bins: int = 100,
    cmap: str = "viridis",
    breaks: np.ndarray = None,
    frame_on: bool = False,
    add_mean: bool = True,
    add_median: bool = False,
    lw: float = 2,
    lc: str = "black",
    ticks: int | List[float] = None,
    tick_params: dict = {"labelsize": 10},
    ax: plt.Axes = None,
    loc: str = "lower left",
    legend_size: Tuple[str, str] | Tuple[float, float] = ("40%", "25%"),
) -> plt.Axes:
    """Create a histogram legend for a specified column in a GeoDataFrame.

    Note:
        "Legendgrams are map legends that visualize the distribution of observations by
        color in a given map."

    Parameters:
        gdf (gpd.GeoDataFrame):
            The GeoDataFrame containing segmented objects.
        column (str):
            The column/feature name to create the legend for. This needs to be numeric.
        n_bins (int):
            The number of bins to use for the histogram.
        cmap (str):
            The name of the matplotlib colormap to use for the legend.
        breaks (np.ndarray):
            Custom breaks for the histogram. If None, breaks will be calculated
            based on the data in the specified column. If provided, should be a
            1D array of numeric values that define the bin edges.
        frame_on (bool):
            Whether to draw a frame around the legend.
        add_mean (bool):
            Whether to add a vertical line for the mean of the specified column.
        add_median (bool):
            Whether to add a vertical line for the median of the specified column.
        lw (float):
            Line width for the mean/median line. Ignored if both `add_mean` and
            `add_median` are False.
        lc (str):
            Line color for the mean/median line. Ignored if both `add_mean` and
            `add_median` are False.
        ticks (int | List[float]):
            Number of x-ticks or an array of explicit tick locations for the x-axis.
        tick_params (dict):
            Extra parameters for the tick labels.
        ax (plt.Axes):
            The axes to draw the legend on. If None, a new axes will be created and the
            legend will be returned as standalone plt.Axes.
        loc (str):
            The location of the legend. One of: "upper left", "upper center", "upper right",
            "center left", "center", "center right", "lower left", "lower center", "lower right".
            Ignored if `ax` is not provided.
        legend_size (Tuple[str, str] | Tuple[float, float]):
            The size (width, height) of the legend. If the values are floats, the size is
            given in inches, e.g. (1.3, 1.0). If the values are strings, the size is in relative
            units to the given input axes, e.g. ("40%", "25%") means 40% of the width and 25%
            of the height of the input axes. Ignored if `ax` is not provided.

    Returns:
        plt.Axes:
            The axes containing the histogram legend. If `ax` is provided, it will be the
            same axes; otherwise, a new axes will be created and returned.

    Examples:
        >>> from histolytics.data import cervix_tissue, cervix_nuclei
        >>> from histolytics.spatial_ops.ops import get_objs
        >>> from histolytics.spatial_geom.shape_metrics import shape_metric
        >>>
        >>> # Get the cervix nuclei and tissue data
        >>> nuc = cervix_nuclei()
        >>> tis = cervix_tissue()
        >>> # Filter the tissue data for CIN lesions and get the neoplastic nuclei
        >>> lesion = tis[tis["class_name"] == "cin"]
        >>> neo = get_objs(lesion, nuc)
        >>> neo = neo[neo["class_name"] == "neoplastic"]
        >>> # Calculate the eccentricity for the neoplastic nuclei
        >>> neo = shape_metric(neo, ["eccentricity"])
        >>>
        >>> # Plot the neoplastic nuclei with eccentricity as a color scale
        >>> col = "eccentricity"
        >>> ax = nuc.plot(
        ...     column="class_name",
        ...     figsize=(6, 6),
        ...     aspect=1,
        ...     alpha=0.5,
        ... )
        >>> ax = neo.plot(
        ...     ax=ax,
        ...     column=col,
        ...     legend=False,
        ...     cmap="turbo",
        ... )
        >>> ax.set_axis_off()
        >>>
        >>> # Add a legendgram to the plot
        >>> legendgram(
        ...     neo,
        ...     column=col,
        ...     ax=ax,
        ...     n_bins=50,
        ...     cmap="turbo",
        ...     frame_on=False,
        ...     lw=2,
        ...     lc="black",
        ...     ticks=3,
        ...     legend_size=("30%", "20%"),
        ... )

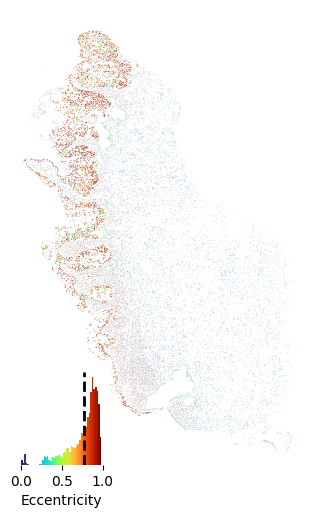

    ![legendgram](../../img/legendgram.png)
    """
    y = gdf[column].values

    # Check if breaks are provided, if not, calculate them
    if breaks is None:
        min_val = int(np.round((y.min()), 1))
        max_val = int(np.round((y.max()), 1))
        step = np.round(((max_val - min_val) / n_bins), 3)
        breaks = np.arange(min_val, max_val, step)

    # Create a colormap with the specified number of breaks
    pal = colormaps.get_cmap(cmap).resampled(len(breaks))

    if ax is None:
        _, histax = plt.subplots()
    else:
        histax = inset_axes(
            ax,
            width=legend_size[0],
            height=legend_size[1],
            loc=loc,
        )

    _, bins, patches = histax.hist(y, bins=n_bins, color="0.0")

    bucket_breaks = [0] + [np.searchsorted(bins, i) for i in breaks]
    for c in range(len(breaks)):
        for b in range(bucket_breaks[c], bucket_breaks[c + 1]):
            try:
                patches[b].set_facecolor(pal(c / len(breaks)))
            except Exception:
                continue

    if add_mean:
        plt.axvline(y.mean(), linestyle="dashed", linewidth=lw, c=lc)

    if add_median:
        plt.axvline(np.median(y), linestyle="dashed", linewidth=lw, c=lc)

    histax.set_frame_on(frame_on)
    histax.set_xlabel(column.title())
    histax.get_yaxis().set_visible(False)
    histax.tick_params(**tick_params)

    # Set x-axis major tick frequency
    if ticks is not None:
        if isinstance(ticks, int):
            tick_spacing = (max_val - min_val) / (ticks - 1)
            histax.xaxis.set_major_locator(MultipleLocator(tick_spacing))
        elif isinstance(ticks, (list, np.ndarray)):
            histax.set_xticks(ticks)

    return histax
